P+F Rotation Speed Monitor KFU8-DW-1.D

The KFU8-DW-1.D Speed Monitor is a device for the indication and monitoring of periodic signals, which occur in almost all areas of automation and process technology, i. e. of frequencies in general and rotational speeds in special cases. The input signals are evaluated in accordance with the cycle method, i. e. by measurement of the period of oscillation and conversion into frequency or rotational speed by a very fast controller.

Technical Data

Functional safety related parameters
MTTFd		100 a
Supply
Rated voltage	Ur	200 ... 230 V AC ; 100 … 130 V AC; 50/60 Hz 20 VDC ... 30 VDC
Fusing		external fusing 4 A
Power consumption		AC: < 5 VA
Power consumption		DC: < 5 W
Input 1
Connection		terminals 8-, 9+
Connectable sensor types		NAMUR sensors according to DIN EN 60947-5-6
Open loop voltage		8.2 V DC
Short-circuit current		6.5 mA
Switching point		1.2 ... 2.1 mA Switching hysteresis approx. 0.2 mA
Input frequency		0.002 ... 10000 Hz, pulse length/duration: ≥ 20µs
Impedance		1.2 kΩ
Input 2
Switching point		high: 16 ... 30 V DC; max.10 mA due to integrated constant current sink; Ri ≅ 3 kΩ
Switching point		low: 0 ... 6 V DC
Input frequency		0.002 ... 40000 Hz, pulse length/duration: ≥ 12µs
Connection		terminals 7+, 13- sensor supply
Connection		terminals 14, 15 NPN/PNP input (galvanically isolated)
Connectable sensor types		Two, three, or four-wire proximity switch, incremental rotary encoder, or externally generated pulses 16 ... 30 V
Sensor supply		19 ... 28 V DC non-stabilised; ≤ 30 mA short-circuit protected
Input 3
Start-up override		Triggering by external signal 16 ... 30 V or Place jumper between terminals 2/3 or by switching on supply voltage (terminal 2 and terminal 3 permanently bridged)
Hold-up time		0.1 ... 999.9 s (External trigger signal)
Output
Relay		1 changeover contact NO, NC, COM
Sensor supply		24 V DC ± 10 %, 30 mA , short-circuit protected
Contact loading		250 V AC/2 A/ cos φ ≥ 0.7
Contact loading		40 V DC/2 A
Delay		≤ 20 ms (incl. calculation time)
Mechanical life		≥ 30.000.000 switching cycles
Transfer characteristics
Changing interval		5 ms (Internal processing time)
Time delay before availability		≤ 400 ms
Measuring error		0 ... 40000 Hz: ≤ ±0,10%
Measuring error		Display: ±1 digit
Timer function		ON-delay, OFF-delay, one shot, pulse extension
Time		0 ... 999.9 s ; mode of operation reversible
Standard conformity
Electromagnetic compatibility		acc. to EN 50081-2 / EN 50082-2
Ambient conditions
Ambient temperature		-25 ... 40 °C (-13 ... 104 °F)
Storage temperature		-40 ... 85 °C (-40 ... 185 °F)
Relative humidity		max. 80 %, not condensing
Altitude		0 ... 2000 m
Operating conditions		The device has only to be used in an indoor area.
Mechanical specifications
Connection assembly		Caution: Please be aware that the device may only be connected to a switchable
Connection assembly		power supply. The switch or circuit breaker must be easy to reach and identified as the separator for the device.
Degree of protection		IP20
Connection		coded, removable terminals , max. core cross section 0.34 ... 2.5 mm2
Construction type		modular terminal housing in Makrolon, System KF For use in the switch cabinet/switch cabinet module
Mounting		snap-on to 35 mm standard rail or screw fixing

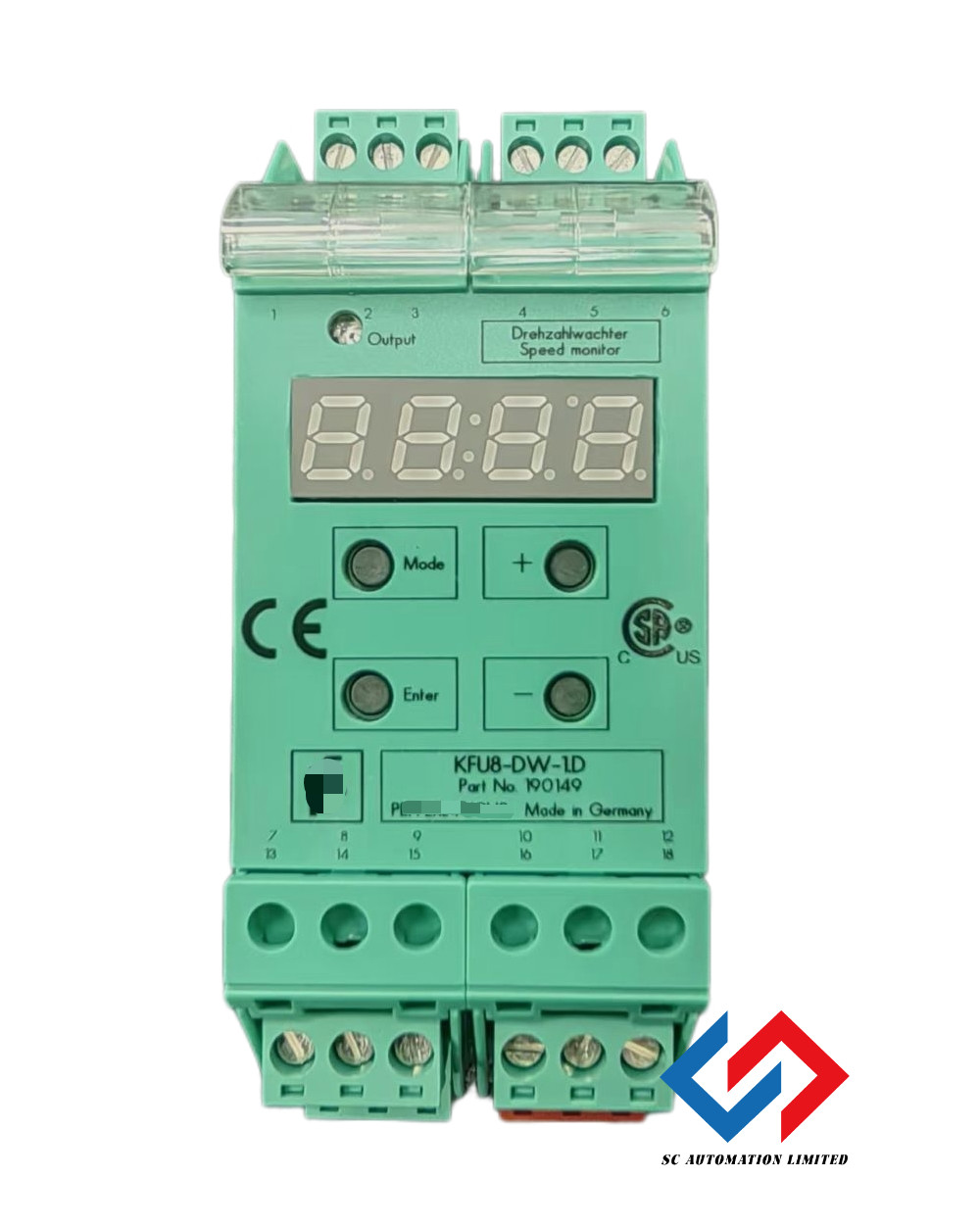

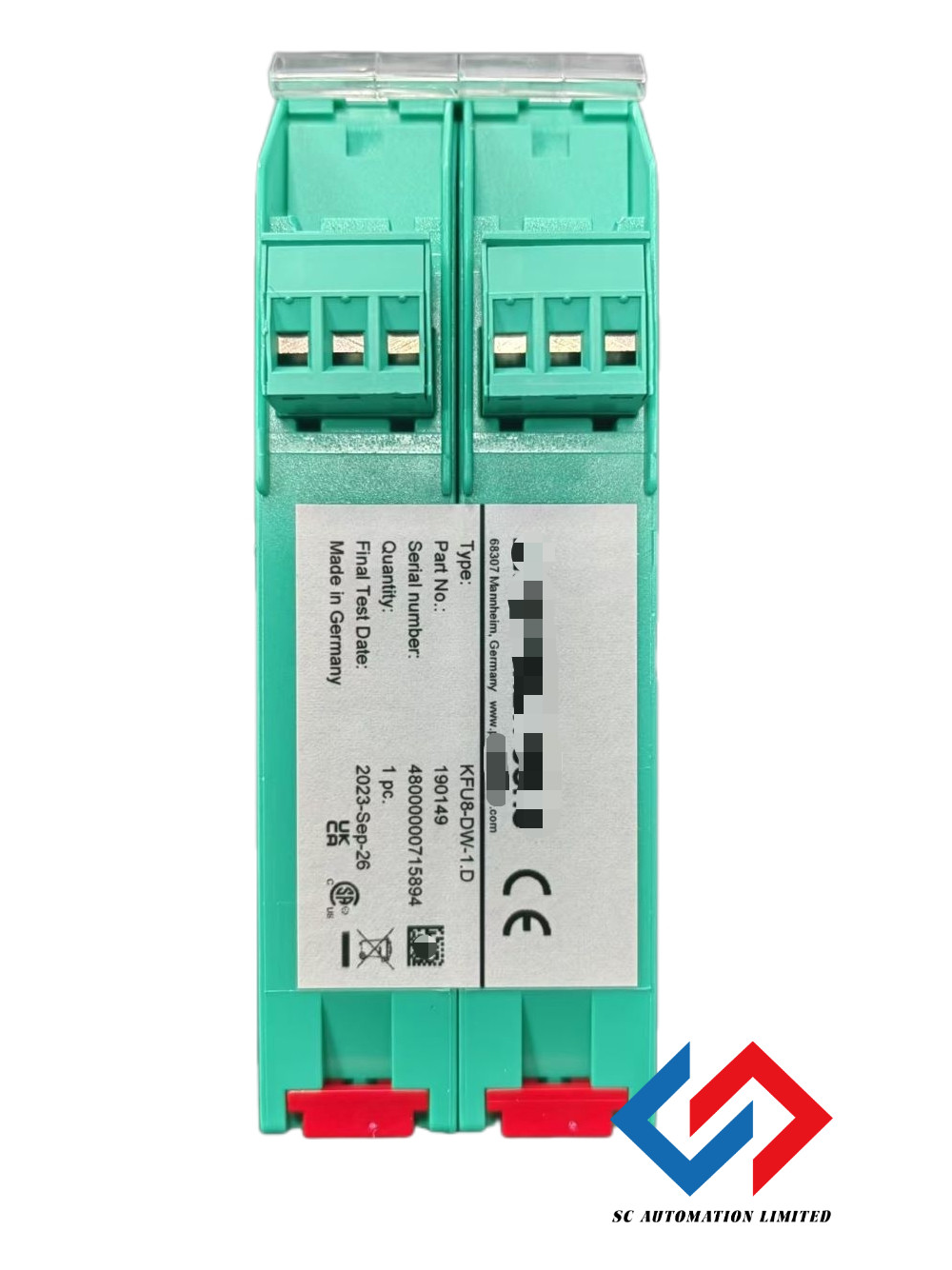

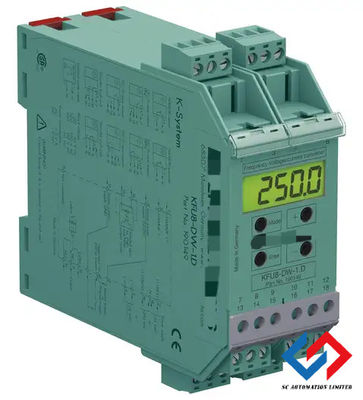

P+F Rotation Speed Monitor KFU8-DW-1.D for the indication and monitoring of periodic signals 0
