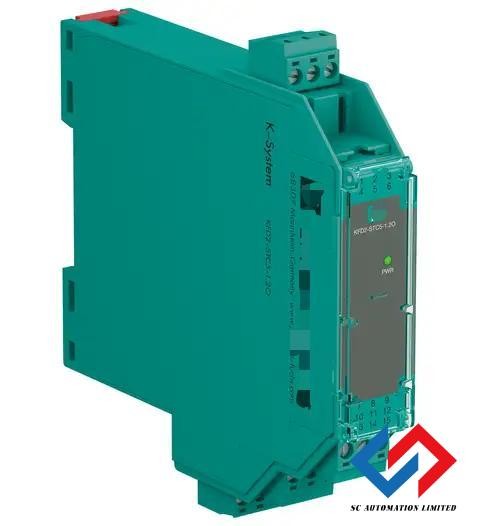

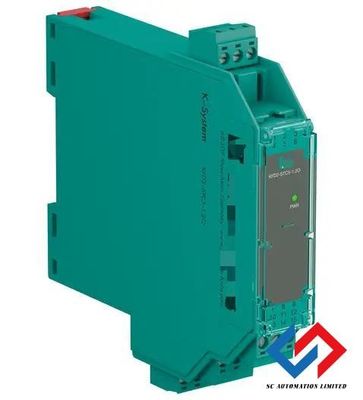

P+F SMART Transmitter Power Supply KFD2-STC5-1.2O

This signal conditioner provides the galvanic isolation between field circuits and control circuits.The device supplies 2-wire and 3-wire SMART transmitters, and can also be used with 2-wire SMART current sources.
It transfers the analog input signal to the control side as two isolated output signals.Digital signals may be superimposed on the input signal on the field side or on the control side and are transferred bi-directionally.
The device provides a sink mode or a source mode output on the control side terminals.The device has an internal resistor. Use this resistor if the HART communication resistance in the control circuit is too low.
Test sockets for the connection of HART communicators are integrated into the terminals of the device.

Technical Data

General specifications
Signal type		Analog input
Functional safety related parameters
Safety Integrity Level (SIL)		SIL 2
Systematic capability (SC)		SC 3
Supply
Connection		Power Rail or terminals 14+, 15-
Rated voltage	Ur	18 ... 30 V DC
Ripple		within the supply tolerance
Power dissipation		≤ 1 W at maximum load
Power consumption		≤ 1.7 W at maximum load
Input
Connection side		field side
Connection		terminals 1+, 2-, 3
Input signal		4 ... 20 mA
Open circuit voltage/short-circuit current		terminals 1+, 3: 23 V / 25 mA
Input resistance		max. 265 Ω terminals 2-, 3 , max. 330 Ω terminals 1+, 3
Available voltage		≥ 16 V at 20 mA ; ≥ 20 V at 4 mA , terminals 1+, 3
Output
Connection side		control side
Connection		terminals 7+, 8-, 9-; 10+, 11-, 12- (sink)
Connection		terminals 7-, 8+, 9+; 10-, 11+, 12+ (source) see additional information
Load		0 ... 600 Ω
Output signal		4 ... 20 mA (overload > 25 mA)
Ripple		max. 50 µA eff
External supply (loop)		2 ... 30 V DC
		If the external voltage is > 19 V, a load ≥ ((V - 19) / 0.02) Ω is required. V represents the value of the external voltage.
		The internal 250 Ω resistor at terminals 9 and 12 can be used as a load.
Transfer characteristics
Deviation		at 20 °C (68 °F), 4 ... 20 mA
Deviation		≤ ± 10 µA incl. calibration, linearity, hysteresis, loads and supply voltage fluctuations
Influence of ambient temperature		≤ 0.25 µA/K
Frequency range		input in output: bandwidth with 1 mApp signal 0 ... 7.5 kHz (-3 dB)
Frequency range		output in input: band width with 1 Vss signal 0.3 ... 7.5 kHz (-3 dB)
Settling time		200 µs
Rise time/fall time		100 µs
Galvanic isolation
Input/Output		basic insulation according to IEC 61010-1, rated insulation voltage 300 Veff
Input/power supply		basic insulation according to IEC 61010-1, rated insulation voltage 300 Veff
Output/power supply		functional insulation, rated insulation voltage 50 V AC
Output/Output		functional insulation, rated insulation voltage 50 V AC
Indicators/settings
Display elements		LED
Labeling		space for labeling at the front
Directive conformity
Electromagnetic compatibility
Directive 2014/30/EU		EN 61326-1:2013 (industrial locations)
Conformity
Electromagnetic compatibility		NE 21:2012
Electromagnetic compatibility		EN 61326-3-2:2008
Degree of protection		IEC 60529:2001
Protection against electrical shock		UL 61010-1:2012
Ambient conditions
Ambient temperature		-20 ... 70 °C (-4 ... 158 °F)
Mechanical specifications
Degree of protection		IP20
Connection		screw terminals
Mass		approx. 150 g
Dimensions		20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch) (W x H x D) , housing type B2
Mounting		on 35 mm DIN mounting rail acc. to EN 60715:2001
