| Place of Origin: | India |
|---|---|
| Brand Name: | MTL |
| Certification: | CE |
| Model Number: | SLP32D |
| Document: | skuPage.SLP32D.pdf |
| Minimum Order Quantity: | 1pc |
| Price: | Negotiable |
| Packaging Details: | Original packaging |
| Delivery Time: | on request |
| Payment Terms: | T/T |
| Supply Ability: | 100 pcs per month |
| Ingress Protection (IP) Ratings: | IP20 | Mounting Method: | T-section DIN Rail |
|---|---|---|---|
| Frequency: | 50 MHz | Conductor Cross-section AWG: | 12 AWG |
| Dimensions: | 90 Mm(L) *90 Mm(H)*12 Mm(W) | Weight: | 140 G |
| Highlight: | Eaton MTL SLP surge protector,SLP32D surge protector with warranty,MTL Safety Barrier surge protection |
||
Overview

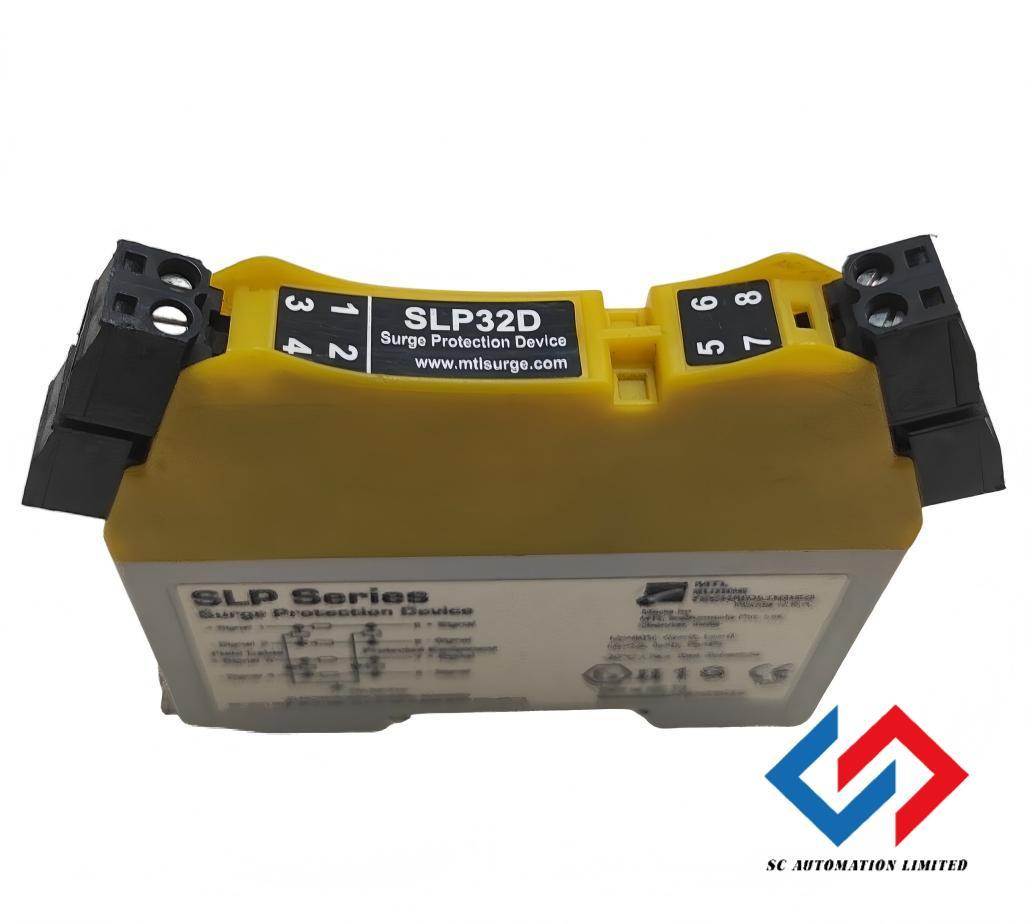

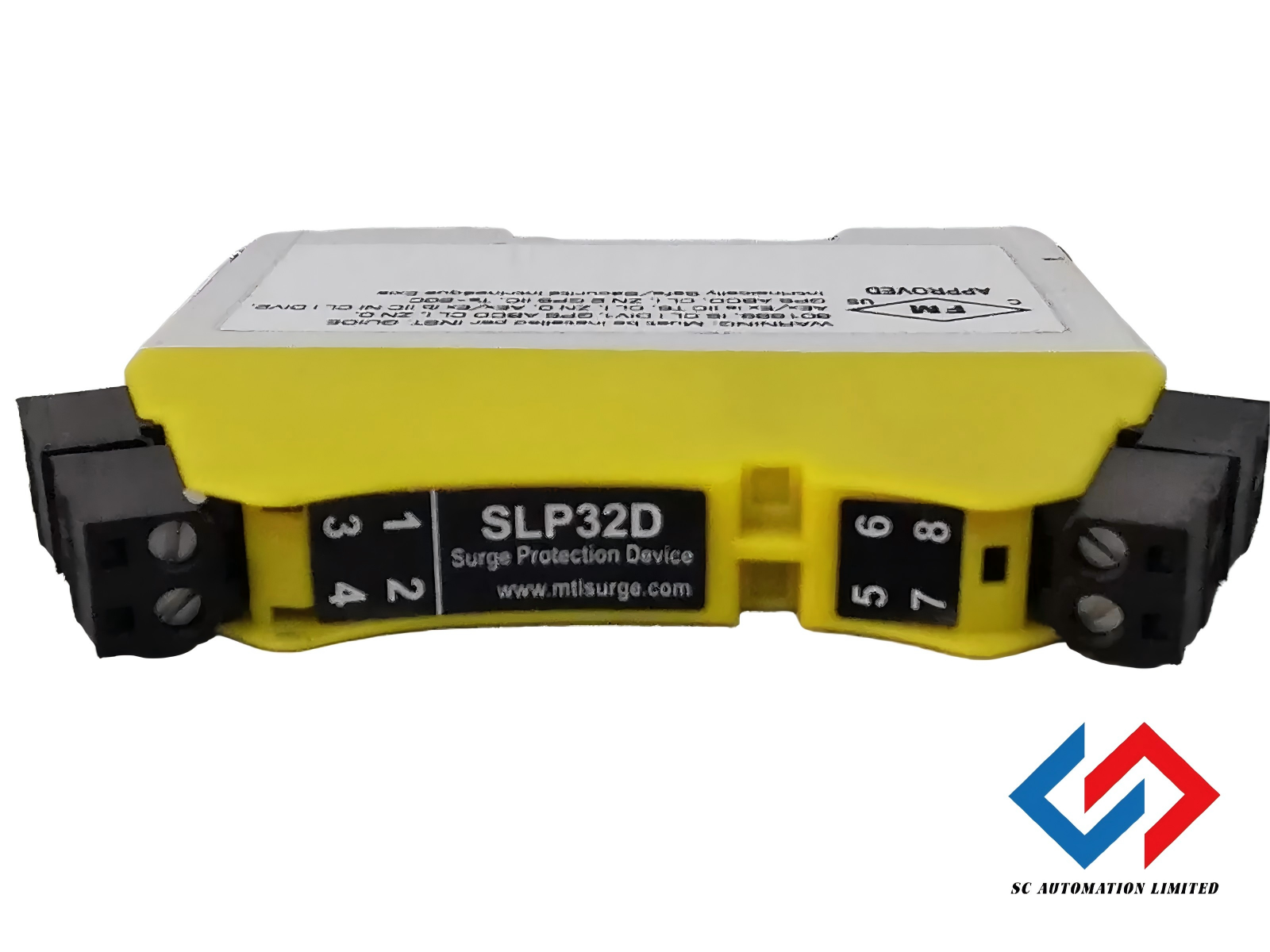

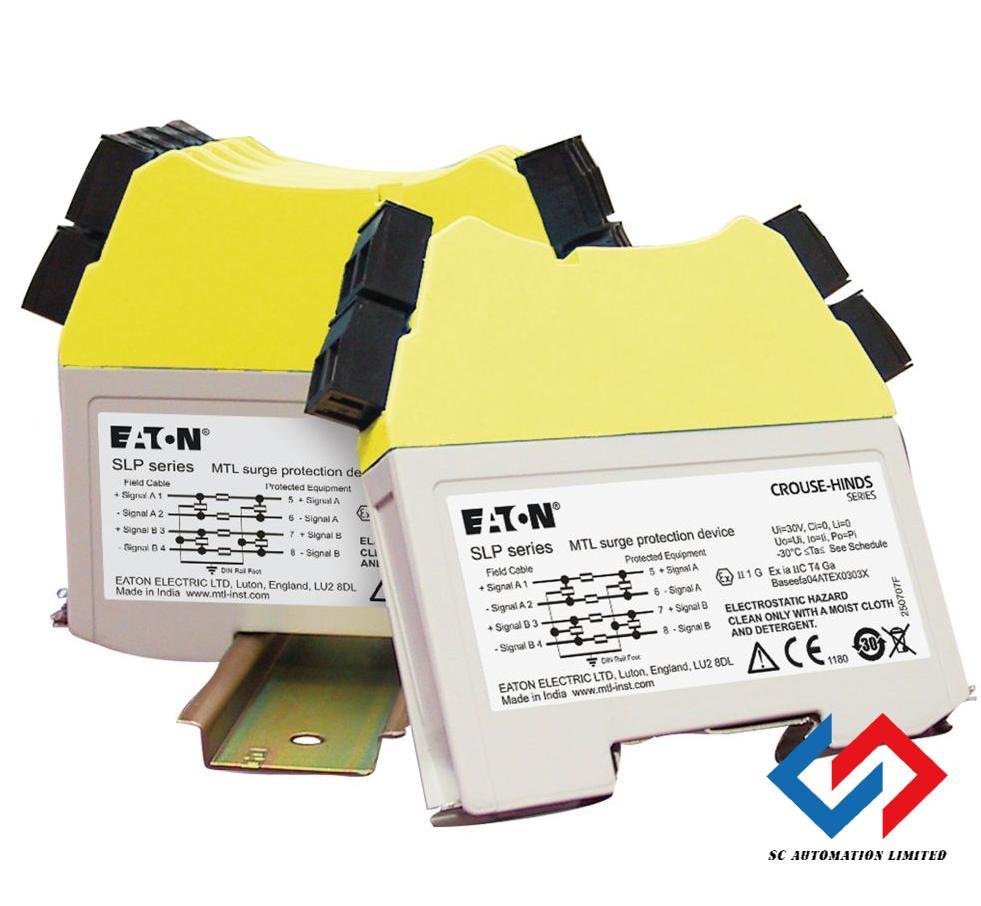

Eaton Crouse-Hinds series MTL SLP surge protector, 24V, 10kA surge current, 1.5A, T-section DIN rail, <38V voltage protection level, Plug/header screw terminal strip, 12 AWG
Product Specifications
| Area classification |
Hazardous/Classified Locations
|
| Standards type |
IEC
NEC/CEC IECEx/ATEX |
| Ingress protection (IP) ratings |
IP20
|
| Mounting Method |
T-section DIN rail
|
| Frequency |
50 MHz
|
| Response Time |
<1ns
|
| Category Tested Acc. IEC 61643-21 |
A2, B2, C1, C2, C3, D1
|
| Connection Details |
Plug/header screw terminal strip
|
| Conductor Cross-section AWG |
12 AWG
|
| Minimum Ambient Operating Temperature |
-40 °C
|
| Maximum Ambient Operating Temperature |
80 °C
|
| Minimum Ambient Storage Temperature |
-40 °C
|
| Maximum Ambient Storage Temperature |
80 °C
|
| Humidity |
5-95% RH (non-condensing)
|
| Modes of Protection |
For digital and analogue I/O
|
| Nominal Voltage DC |
24V
|
| Nominal Discharge Surge Current (8/20) |
10 kA
|
| Lightning Impulse Current (10/350 µs) |
2.5 kA
|
| Nominal Load Current |
1.5A
|
| Voltage Protection Level at In |
40V
|
| Voltage Protection Level at 1kV/µS |
<38V
|
| Series Resistance (Ω/Line) |
1.0Ω
|
| Max. Leakage Current |
<1µA
|
| Max. Continuous Voltage DC |
32V
|
| IEC |
IEC61643-21
|
![]()
