Product Description

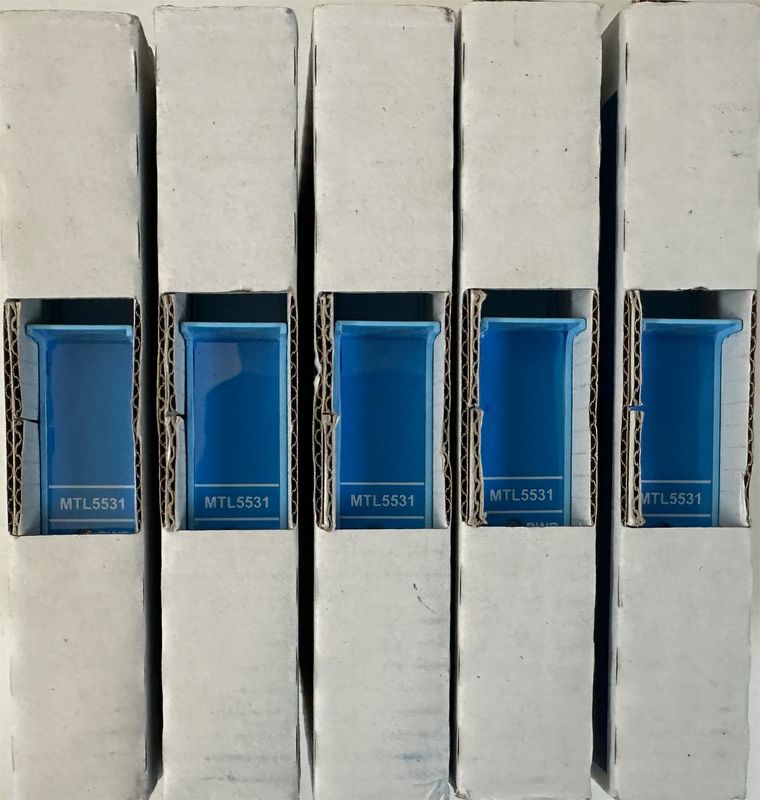

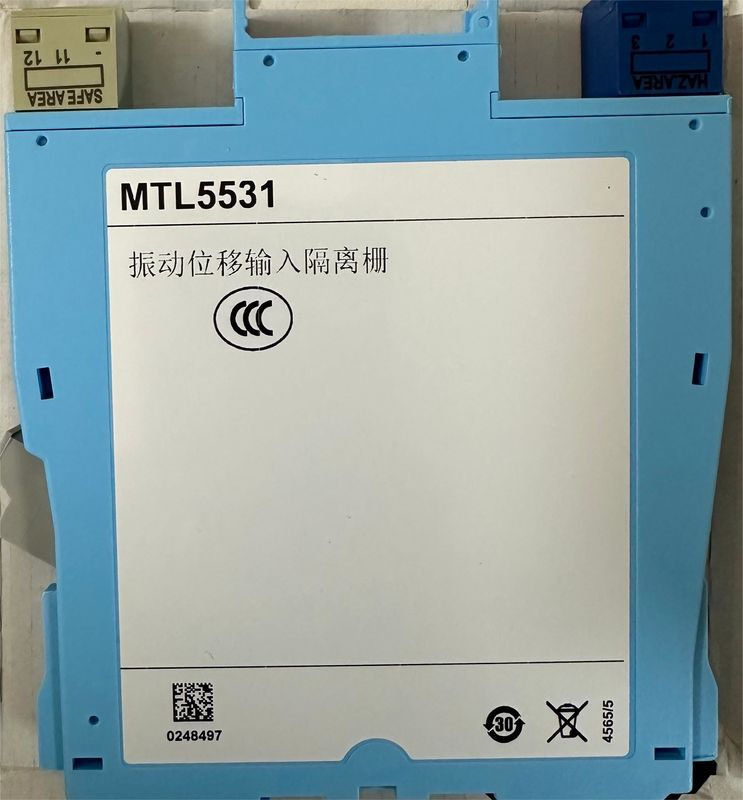

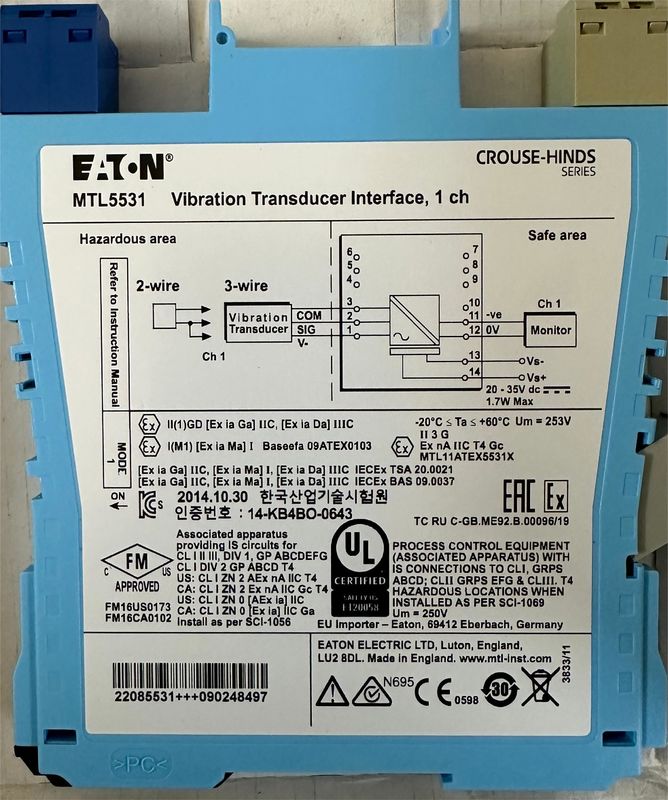

MTL5531 VIBRATION TRANSDUCER INTERFACE

The MTLx531 repeats a signal from a vibration sensor in a hazardous area, providing an output for a monitoring system in the safe area.The interface is compatible with 3-wire eddy-current probes and accelerometers or 2-wire current sensors; the selection is made by a switch on the side of the module.

SPECIFICATION

Location of signal sourceN

Zone 0, IIC, T4–6 hazardous area if suitably certified

Div. 1, Group A hazardous location

Hazardous-area input

Input impedance

(terminals 2 & 3): 10kΩ

Transducer supply voltage, 3-wire (terminals 3 & 1)

Transducer supply current, 2-wire

3.3mA (nom.) for 2-wire sensors, user selectable by switch

Signal range

Minimum –20V, maximum –0.5V

DC transfer accuracy at 20°C

<±50mV

AC transfer accuracy at 20°C

0Hz to 1kHz: ±1%

1kHz to 10kHz: –5% to +1%

10kHz to 20kHz: –10% to +1%

Temperature coefficient

±50ppm/°C (10 to 65°C)

±100ppm/°C (–20 to 10°C)

Voltage bandwidth

–3dB at 47kHz (typical)

Phase response

<14µs, equivalent to:

–1° at 200Hz

–3° at 600Hz

–5° at 1kHz

–50° at 10kHz

–100° at 20kHz

Safe-area output impedance

<20Ω

LED indicator

Green: power indication

Maximum current consumption (10mA transducer load)

65mA at 24V

Maximum power dissipation within unit

1.33W

Safety description

Terminals 3 to 1

Uo=26.6V Io=94mA Po=0.66W Um = 253V rms or dc Terminals 3 to 2

Non-energy-storing apparatus ≤1.5V, ≤0.1A and ≤25mW
