SC4AJ-S-AD-15-002-10-T1/PF YOKOGAWA Conductivity Sensor SC4AJ

Basic Information
Place of Origin: Japan
Brand Name: YOKOGAWA
Certification: CE
Model Number: SC4AJ-S-AD-15-002-10-T1/PF
Document: IM12D08F03-02E.pdf
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: Original packaging
Delivery Time: 12-16 weeks
Payment Terms: T/T
Supply Ability: 100pcs per month
Object Of Measurement: Conductivity Of Liquids Or Solutions Measuring Principle: Two-electrode System
Temperature Range: 0 To 110℃ (For Electrode) Pressure Range: 0 To 1 MPa (For Electrode)
Temperature Sensor: Pt1000 Process Connection: Adapter Mounting, Welding Socket, Welding Clamp
Highlight:

YOKOGAWA SC4AJ conductivity sensor

,

YOKOGAWA transmitter conductivity sensor

,

SC4AJ conductivity sensor with warranty

SC4AJ-S-AD-15-002-10-T1/PF YOKOGAWA Conductivity Sensor SC4AJ

Product Introduction

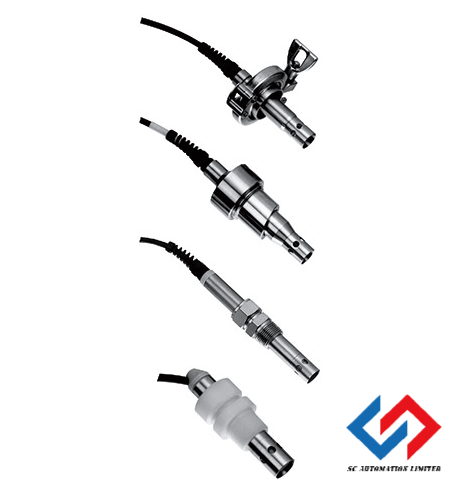

The SC4AJ is developed with the intention for the low conductivity applications found in the semiconductor, power, and pharmaceutical industries. The SC4AJ is in a convenient compact style.
The cell has been made available with either a titanium or stainless steel electrode. The electrode is the 2-electrode system with cell constants of 0.02 cm-1 or 0.10 cm-1, and with a fixed cable 3 to 20 meters in length. In response to customer demands, a variety of fittings for SC4AJ are also
available.


Model and Suffix Codes


Model Suffix Code Option Code Description
SC4AJ ........................................................... ...................... Conductivity sensor
Material -T ...................... Titanium (Only for -AD)
-S ...................... 316L SS
Fitting type -AD ...................... Adapter mounting type
-SA ...................... Welding socket type (*1)
-SB ...................... 1 or 1.5 inch welding clamp type (*2)
-SC ...................... 2 inch welding clamp type (*2)
Sensor length -9 ................ 9 cm (Code for -AD)
-15 ................ 15 cm (Code for -AD)
-NN ................ fixed length (Code for -SA, -SB, -SC)
Cell constant -2 ................ 0.02 cm-1
-10 ................ 0.1 cm-1
Cable length -3 ................ 3 m (pin terminals)
-5 ................ 5 m (pin terminals)
-10 ................ 10 m (pin terminals)
-15 ................ 15 m (pin terminals)
-20 ................ 20 m (pin terminals)
-X1 ................ 3 m (M4 ring terminals) (*4)
-X2 ................ 5 m (M4 ring terminals) (*4)
-X3 ................ 10 m (M4 ring terminals) (*4)
-X4 ................ 15 m (M4 ring terminals) (*4)
-X5 ................ 20 m (M4 ring terminals) (*4)
-Y1 ................ 3 m (M3 ring terminals) (*5)
-Y2 ................ 5 m (M3 ring terminals) (*5)
-Y3 ................ 10 m (M3 ring terminals) (*5)
-Y4 ................ 15 m (M3 ring terminals) (*5)
-Y5 ................ 20 m (M3 ring terminals) (*5)
-VS ................ Variopin connector (*6)
Temperature sensor 0 ................ Pt1000
Option                                                     For AD only                                     /PS 3/4NPT adapter 316 SS

/PF 3/4NPT adapter PVDF
/RS R3/4 adapter 316 SS
/RF R3/4 adapter PVDF
For SA only /SA1 Straight welding socket 316L SS

/SA2 Angled welding socket 15° 316L SS
For SB only /SB1 Welding clamp 1 inch 316L SS

/SB2 Welding clamp 1.5 inch 316L SS
For SC only /SC1 Welding clamp 2 inch 316L SS
Oil prohibit /DG1 Oil-prohibited use (*3)



Spare parts

Parts No. Description
K9670MA O-ring for -SA (excluding -VS)
K9675VY O-ring set for -SA (for -VS)
K9670MK Seal rings for /SB1 or /SB2
K9670MP Seal rings for /SC1
K9670MT 3/4 NPT Stainless steel adapter for -AD
K9670MU 3/4 NPT PVDF Adapter for -AD
K9670MV R3/4 Stainless steel adapter for -AD
K9670MW R3/4 PVDF Adapter for -AD
K9670MD Angled welding socket and mounting nut for -SA
K9670ME Staight welding socket for -SA
K9670MB Angled welding socket for -SA
K9670MC Straight welding socket for -SA
K9670ML Welding clamp 1 or 1.5 inch for -SB
K9670MQ Welding clamp 2 inch for -SC
