4A P+F Sensors Female Connector V12-G-YE10M-PVC

Basic Information

Place of Origin:	Germany
Brand Name:	P+F
Certification:	CE
Model Number:	V12-G-YE10M-PVC

Minimum Order Quantity:	1 piece
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now

Volume Resistance:

< 5 MΩ

Operating Current (TM):

Max. 4 A

Test Voltage:

> 1500 V Eff AC

Operating Voltage:

Max. 300 V DC

Number Of Pins:

Ambient Temperature:

-25 ... 105 °C (-13 ... 221 °F)

Degree Of Protection:

IP68 / IP69K

Pollution Degree:

Highlight:

4A P+F Sensors

P+F Sensors Female connector

V12-G-YE10M-PVC

Female connector V12-G-YE10M-PVC

Name: 4A P+F Sensors Female Connector V12-G-YE10M-PVC
Brand: SC Automation Limited
SKU: V12-G-YE10M-PVC
Price: 898.00 USD
Availability: InStock

Features

Knurled nut suitable for tool assembly;

Immunity to vibration, with mechanical latching;

Gold-plated and machined contacts;

Degree of protection IP68 / IP69K.

Technical Data

Product Description
Connecting cable, 1/2" - 20 UNF, 3-pin, PVC cable

General specifications
Number of pins		3
Connection 1		socket
Construction type 1		straight
Threading 1		1/2"
Connection 2		cable end
Electrical specifications
Operating voltage		max. 300 V DC
Test voltage		> 1500 V eff AC
Operating current		max. 4 A
Volume resistance		< 5 mΩ
Ambient conditions
Ambient temperature		-25 ... 105 °C (-13 ... 221 °F)
Pollution degree		3
Mechanical specifications
Pin diameter		1 mm
Degree of protection		IP68 / IP69K
Material
	Contacts	CuSn / Au
	Contact surface	Ni/Au
	Body	TPU , yellow
	Cable	PVC
	Slotted nut	brass, nickel-plated
	Core insolation	PVC
Cable		fine-strand, flexible
	Sheath diameter	∅5.2 mm
	Bending radius	10 x cable Diameter:
	Color	yellow
	Cores	3 x 0.34 mm2
	Length	10 m
Flammability
	Contact carrier	94 V-2
	Housing	94 V-2
	Cable	VW-1 flame rating from UL

Related Models:

KFU8-UFT	KFD0-CS-Ex1.51P
K-HM26-2M-261533	KFD0-CS-Ex2.50P
NBB15-U1-E2	KFD0-CS-Ex2.51P
NBB1,5-5GM25-E2	KFD0-RO-Ex2
NBB1,5-5GM25-E2-V3	KFD0-SCS-Ex1.55
NBB1,5-F79-E0	KFD0-SD2-Ex2.1045
NBB1,5-F79-E2	KFD0-SD2-Ex2.1245
NBB15-U1-Z2	KFD0-TR-Ex1
NBB5-18GM50-E2-V1	KFD0-CC-1
NBB15-30GM30-E2-V1	KFD0-HMS-16
NBB15-30GM50-A2-V1	KFD0-RSH-1.4S.PS2
NBB15-30GM50-E2	KFD0-SD2-EX1.10100
NBB15-30GM50-E2-M	KFD0-SD2-EX1.1045
NBB15-30GM50-E2-V1	KFD2-UT2-1
NBB15-30GM50-E2-V1-M	KFD2-CD-1.32
NBB8-18GM30-E2	KFD2-CD-EX1.32
NBB8-18GM30-E2-V1	KFD2-HMM-16
NBB8-18GM60-A2-V1	KFD2-SH-EX1.T
NJ4-12GK-SN	KFD2-UT2-1
NJ5-18GK-N	KFD2-VR4-EX1.26
NJ5-18GK-N-150	KFU8-UFC-1.D
NJ5-18GM-N	V15-G-2M
NJ8-18GK-N	Z 787
RD0-FB-EX4	Z787.H
RD0-TI-Ex8.FF.*	HIC2031
Z787.F	Z787.H.F

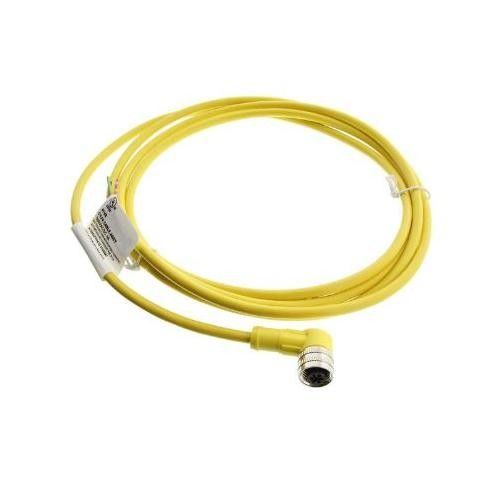

4A P+F Sensors Female Connector V12-G-YE10M-PVC 0
