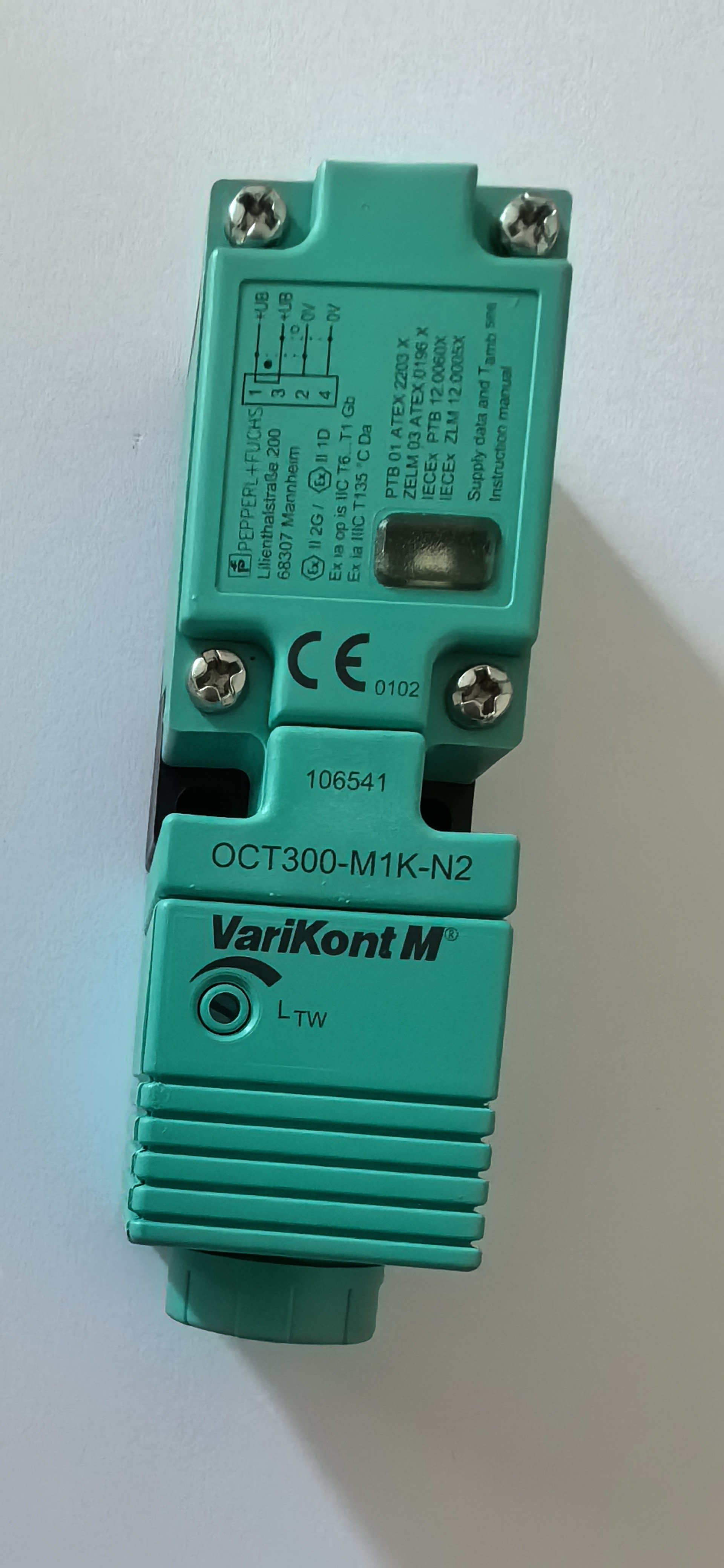

Diffuse mode sensor, NAMUR OCT300-M1K-N2

Diffuse mode sensor, NAMUR, special design, 300 mm detection range, infrared light, light/dark on, DC version, NAMUR output, terminal compartment.

General specifications
Detection range		0 ... 300 mm
Adjustment range		70 ... 300 mm
Reference target		standard white 200 mm x 200 mm
Light source		IRED , 880 nm
Light type		modulated infrared light
Ambient light limit		≤ 40000 Lux sun light ≤ 30000 Lux halogen light
Temperature influence		≤ 0.5 mm/K
Functional safety related parameters
MTTFd		1319 a
Mission Time (TM)		20 a
Diagnostic Coverage (DC)		0 %
Indicators/operating means
Function indicator		LED yellow: switching state
Control elements		Sensing range adjuster
Electrical specifications
Operating voltage		6 ... 20 V DC (Ri approx. 0 Ohm)
Ripple		5 %
Time delay before availability		20 ms
Output
Switching type		light/dark on, programmable
Signal output		1 NAMUR output NC/NO programmable
Switching voltage		8 V DC (Ri approx. 1 kΩ)
Switching frequency		≤ 100 Hz
Current consumption
	Reference target detected	connection 1, 2: ≤ 1 mA connection 3, 4: ≥ 2.7 mA
	Reference target not detected	connection 1, 2: ≥ 2.7 mA connection 3, 4: ≤ 1 mA
Response time		5 ms
Repeat accuracy		≤ 0.5 % of the sensing range
Conformity
Product standard		EN 60947-5-2
Compliance with standards and directives
Standard conformity
	Standards	EN 60947-5-6:2000
Ambient conditions
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Storage temperature		-40 ... 80 °C (-40 ... 176 °F)
Mechanical specifications
Degree of protection		IP20
Connection		M16 terminal compartment, core cross section ≤ 2.5 mm2
Material
	Housing	PBT
	Optical face	Scratch resistant mineral glass lens
Mass		100 g
Dimensions
	Height	30 mm
	Width	30 mm
	Depth	102 mm
ATEX G
EC-Type Examination Certificate		PTB 01 ATEX 2203 X
Applicant		Pepperl+Fuchs GmbH, Lilienthalstrasse 200, 68307 Mannheim, Germany
CE marking		CE0102
ATEX marking		Zone 1: II 2G Ex ia op is IIC T6...T1 Gb
Directive conformity		2014/34/EU
Standards		EN 60079-0:2012+A11:2013 EN 60079-11:2012 EN 60079-28:2007
Effective internal capacitance Ci		max. 75 nF
Effective internal inductance Li		negligibly small
General		The apparatus must be operated in accordance with the data provided in the datasheet and this operating instruction. In particular, the maximum rated voltage and the temperature range must be adhered to. The special conditions must be adhered to! The EU-type examination certificate has to be observed.
Ambient temperature		The temperature ranges, according to temperature class, are given in the EC-Type Examination Certificate.
Installation, commissioning		The associated apparatus must, as a minimum, fulfill the requirements for degree of protection ia and for Groups II or III, as appropriate for the operating conditions. Due to the possible risk of ignition that can occur as a result of faults and/or transient currents in the equipotential bonding system, galvanic isolation in the supply and signal current circuit is preferred. Associated apparatus without galvanic isolation may only be used if the appropriate requirements as set out in IEC 60079-14 are met. The intrinsic safety is only assured in connection with an appropriate related apparatus and according to the proof of intrinsic safety.
Maintenance		No modifications must be undertaken on apparatus, which is operated in hazardous areas. Repairs to such apparatus are not permissible.
Special conditions
	Protection from mechanical danger	When used in the temperature range below -20 °C the sensor should be protected from knocks by the provision of an additional housing.
	Degree of protection required when installing connecting components	IP20 according to IEC 60529:2001
	Other conditions	Refer to the relevant EC type examination certificate to see the relationship between the connected circuit type, the maximum permitted ambient temperature and the temperature class as well as effective inner reactances.
ATEX D
EC-Type Examination Certificate		ZELM 03 ATEX 0196 X
Applicant		Pepperl+Fuchs GmbH, Lilienthalstrasse 200, 68307 Mannheim, Germany
CE marking		CE0102
ATEX marking		Zone 20/21: II 1D Ex ia IIIC T 135°C Da
Directive conformity		2014/34/EU
Standards		EN 60079-0:2012+A11:2013 EN 60079-11:2012 EN 60079-28:2007
Effective internal capacitance Ci		max. 1200 nF
Effective internal inductance Li		negligibly small
General		The apparatus must be operated in accordance with the data provided in the datasheet and this operating instruction. In particular, the maximum rated voltage and the temperature range must be adhered to. The special conditions must be adhered to! The EU-type examination certificate has to be observed.
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Installation, commissioning		The associated apparatus must, as a minimum, fulfill the requirements for degree of protection ia and for Groups II or III, as appropriate for the operating conditions. Due to the possible risk of ignition that can occur as a result of faults and/or transient currents in the equipotential bonding system, galvanic isolation in the supply and signal current circuit is preferred. Associated apparatus without galvanic isolation may only be used if the appropriate requirements as set out in IEC 60079-14 are met. This certificate does not guarantee that the components installed in the partition isolate the zones completely from one another. Appropriate measures must be taken when the partition is set up to ensure the zones are completely isolated.
Maintenance		No modifications must be undertaken on apparatus, which is operated in hazardous areas. Repairs to such apparatus are not permissible.
Special conditions
	Protection against dangerous electrostatic charging	The device must be installed such that electrostatic discharges can be avoided. If the device is installed in accordance with the instructions provided by the manufacturer, no dangerous electrostatic charge is to be expected given the properties of the device.
	Protection from mechanical danger	When used in the temperature range below -20 °C the sensor should be protected from knocks by the provision of an additional housing.
	Degree of protection required when installing connecting components	IP20 according to IEC 60529:2001
	Other conditions	Refer to the relevant EC type examination certificate to see the relationship between the connected circuit type, the maximum permitted ambient temperature and the surface temperature class. In applications where high levels of charge are expected (e.g. electrostatic paint, foil manufacture, dust extraction, mechanical friction), structural measures must be taken to limit the surface area of the plastic housing exposed to this charge to approximately 15 cm2 in order to avoid propagating brush discharge. When setting up a partition between different zones, appropriate measures must be taken to ensure that the components installed in the partition isolate the zones completely from one another.
IECEx G
Certificate number		IECEx PTB 12.0060 X
Applicant		Pepperl+Fuchs GmbH, Lilienthalstrasse 200, 68307 Mannheim, Germany
IECEx marking		Zone 1: II 2G Ex ia op is IIC T6...T1 Gb
Standards		IEC 60079-0:2011 IEC 60079-11:2011 IEC 60079-28:2006
Effective internal capacitance Ci		max. 75 nF
Effective internal inductance Li		negligibly small
General		The apparatus must be operated in accordance with the data provided in the datasheet and this operating instruction. In particular, the maximum rated voltage and the temperature range must be adhered to. The special conditions must be adhered to! The IECEx certificate must be observed.
Ambient temperature		The temperature ranges, according to temperature class, are given in the EC-Type Examination Certificate.
Installation, commissioning		The associated apparatus must, as a minimum, fulfill the requirements for degree of protection ia and for Groups II or III, as appropriate for the operating conditions. Due to the possible risk of ignition that can occur as a result of faults and/or transient currents in the equipotential bonding system, galvanic isolation in the supply and signal current circuit is preferred. Associated apparatus without galvanic isolation may only be used if the appropriate requirements as set out in IEC 60079-14 are met. The intrinsic safety is only assured in connection with an appropriate related apparatus and according to the proof of intrinsic safety.
Maintenance		No modifications must be undertaken on apparatus, which is operated in hazardous areas. Repairs to such apparatus are not permissible.
Special conditions
	Protection from mechanical danger	When used in the temperature range below -20 °C the sensor should be protected from knocks by the provision of an additional housing.
	Degree of protection required when installing connecting components	IP20 according to IEC 60529:2001
	Other conditions	Refer to the relevant EC type examination certificate to see the relationship between the connected circuit type, the maximum permitted ambient temperature and the temperature class as well as effective inner reactances.
IECEx D
Certificate number		IECEx ZLM 12.0005X
Applicant		Pepperl+Fuchs GmbH, Lilienthalstrasse 200, 68307 Mannheim, Germany
IECEx marking		Ex ia IIIC T135°C Da
Standards		IEC 60079-0:2011 IEC 60079-11:2011
Effective internal capacitance Ci		max. 1200 nF
Effective internal inductance Li		negligibly small
General		The apparatus must be operated in accordance with the data provided in the datasheet and this operating instruction. In particular, the maximum rated voltage and the temperature range must be adhered to. The special conditions must be adhered to! The IECEx certificate must be observed.
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Installation, commissioning		The associated apparatus must, as a minimum, fulfill the requirements for degree of protection ia and for Groups II or III, as appropriate for the operating conditions. Due to the possible risk of ignition that can occur as a result of faults and/or transient currents in the equipotential bonding system, galvanic isolation in the supply and signal current circuit is preferred. Associated apparatus without galvanic isolation may only be used if the appropriate requirements as set out in IEC 60079-14 are met. This certificate does not guarantee that the components installed in the partition isolate the zones completely from one another. Appropriate measures must be taken when the partition is set up to ensure the zones are completely isolated.
Maintenance		No modifications must be undertaken on apparatus, which is operated in hazardous areas. Repairs to such apparatus are not permissible.
Special conditions
	Protection against dangerous electrostatic charging	The device must be installed such that electrostatic discharges can be avoided. If the device is installed in accordance with the instructions provided by the manufacturer, no dangerous electrostatic charge is to be expected given the properties of the device.
	Protection from mechanical danger	When used in the temperature range below -20 °C the sensor should be protected from knocks by the provision of an additional housing.
	Degree of protection required when installing connecting components	IP20 according to IEC 60529:2001
	Other conditions	When setting up a partition between different zones, appropriate measures must be taken to ensure that the components installed in the partition isolate the zones completely from one another.
