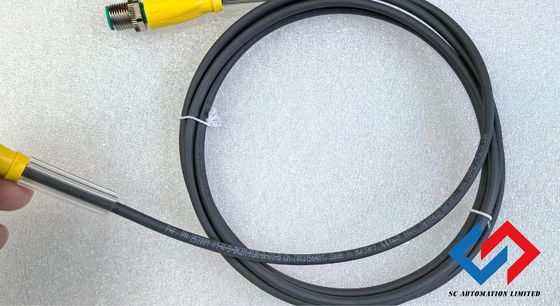

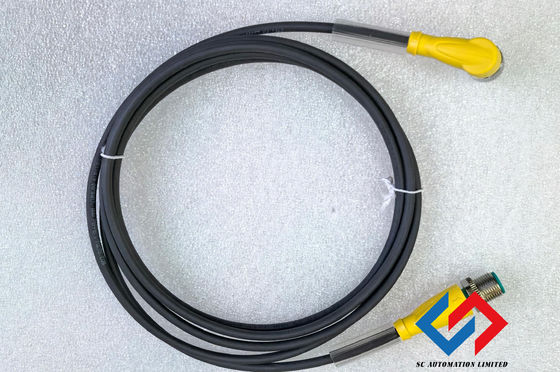

P+F Connection cable V1-W-BK2M-PUR-U-V1-G with Max. 250 V Operating Voltage

  • P+F Connection cable V1-W-BK2M-PUR-U-V1-G with Max. 250 V Operating Voltage
  • P+F Connection cable V1-W-BK2M-PUR-U-V1-G with Max. 250 V Operating Voltage
  • P+F Connection cable V1-W-BK2M-PUR-U-V1-G with Max. 250 V Operating Voltage
  • P+F Connection cable V1-W-BK2M-PUR-U-V1-G with Max. 250 V Operating Voltage
Place of Origin DE
Brand Name P+F
Certification CE
Model Number V1-W-BK2M-PUR-U-V1-G
Document 456594_eng.pdf
Minimum Order Quantity 1pc
Price negotiable
Packaging Details Original packaging
Delivery Time 8-10 weeks
Payment Terms T/T
Supply Ability 100pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connection Socke Construction Type M12
Style Angled Locking Screw Connection
Number Of Pins 4 Operating Voltage Max. 250 V AC/DC
Highlight

V1-W-BK2M-PUR-U-V1-G

,

V1-W-BK2M-PUR-U-V1-G cable

,

P+F Connection cable
Leave a Message
Product Description

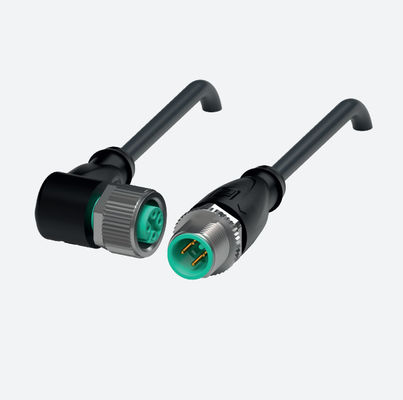

P+F Connection cable V1-W-BK2M-PUR-U-V1-G

Cordset M12 socket angled to M12 plug straight A-coded, 4-pin, PUR cable black, UL-approved, drag  chain suitable, torsion resistant

Dimensions

P+F Connection cable V1-W-BK2M-PUR-U-V1-G with Max. 250 V Operating Voltage 0




General specifications
Connector 1

     Connection
socket
     Construction type
M12
     Style
angled
     Locking
screw connection
     Number of pins
4
     Coding
A-coded
Connector 2

     Connection
plug
     Construction type
M12
     Style
straight
     Locking
screw connection
     Number of pins
4
     Coding
A-coded
Electrical specifications
Operating voltage UB max. 250 V AC/DC
Operating current IB max. 4 A
Conformity
Degree of protection
EN 60529
 Plug connection
connector M12 x 1 : IEC 61076-2-101
 Flammability
UL 1581; DIN EN 60332-2-2
 Halogen-free
IEC 60754-1
Approvals and certificates
 UL approval
AWM STYLE 20549 AWM I/II A/B 80°C 300V FT2 (cable)
 UL File Number
E231213
Ambient conditions
 Ambient temperature

Plug connector
-40 ... 90 °C (-40 ... 194 °F)
Cable, fixed
-40 ... 80 °C (-40 ... 176 °F)
Cable, flexing
-20 ... 80 °C (-4 ... 176 °F)
 Pollution degree
3
Mechanical specifications
 Plug connector

Tightening torque
0.6 Nm
Loosening protection
available
Tool installation
straight knurling and hexagon nut SW = 14 mm
Mating cycles
min. 100
 Degree of protection
IP68 / IP69
 Cable
according to IEC/EN 60228 (DIN VDE 0295) class 6
Sheath diameter
4.3 mm
Bending radius
> 10 x cable diameter, moving
> 5 x cable diameter, fixed
Sheath stripping force
max. 80 N / 300 mm
Sheath color
black (similar to RAL 9005)
Number of cores
4
Core cross section
0.34 mm2
Cores color
Core 1: brown
Core 2: white
Core 3: blue
Core 4: black
Core construction
42 x 0.1 mm ∅
Length  L 2 m
Cable code
Li 9Y 11Y 4 x 0.34
 Drag chain suitability

Drag chain cycles
min. 5000000
Motion velocity
max. 3.3 m/s
Traverse distance
max. 5 m
Acceleration
max. 5 m/s2
Torsion cycles
min. 1000000
Torsional stress
± 180 °/m
Material
 PWIS free
yes
 Halogen-free
yes
 Plug connector

Screw connection
Zinc diecast, nickel-plated
Body
TPU, black
Seal
FKM
Contact surface
gold plated (Au)
Flammability
V-2
 Cable

Sheathing
PUR based on polyether
Core insulation
PP
UV resistance
yes
Dimensions
Dimen
P+F Connection cable V1-W-BK2M-PUR-U-V1-G with Max. 250 V Operating Voltage 1
Dimensions

Dimensions
Dimensions
